Specifications | Specifications | ||||||
|---|---|---|---|---|---|---|---|
Weight | 11,340 kg | Screed Heat | Electric - 4 elements | ||||
Length | 4623 mm | Vibration | 4 x 2500 vpm max | ||||
Width | 2591 mm | Auger Speed | 150 rpm max | ||||
Height | 2540 mm | Engine | Cat® C3. 6 Tier 4F/Stage V | ||||
Truck Clearance | 482 mm | Paving Speed | 150 fpm | ||||
Auger Diameter | 356 mm | Transport Speed | 350 fpm | ||||
Screed Weight | 1996 kg | Fuel Capacity | 121 L | ||||
Main Plate Width | 419 mm | Hydraulic Capacity | 114 L | ||||
Extension Plate Width | 254 mm | DEF Capacity | 5 gal |
Weiler
P395 Commercial Paver
The Weiler-designed screed delivers outstanding mat quality and a standard paving range of 2.3 m to 3.35m. Four heating elements and optional heated end gates are powered by a hydraulically driven 12 kW generator.

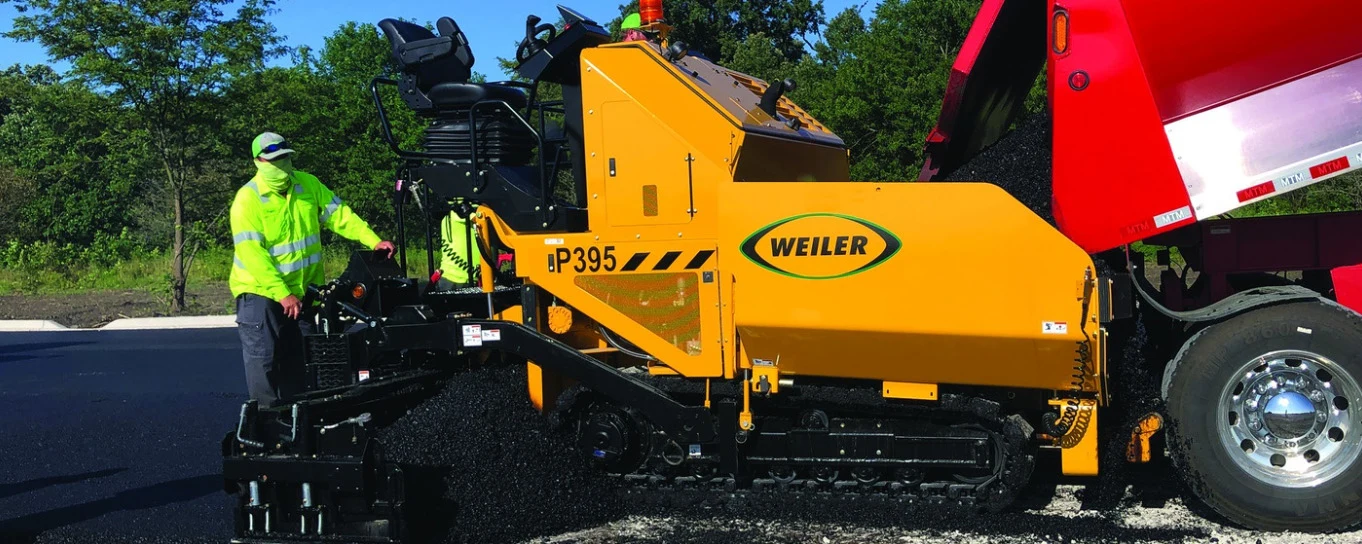

Weiler P395 Asphalt Paver
Features
BUILT FOR HIGH PRODUCTION
Engineered and built to exceed the demands of commercial paving, the Weiler P395 incorporates proven designs with new innovations to provide performance, reliability and outstanding mat quality in a wide range of applications.
PROVEN SCREED
The Weiler-designed 1996 kg screed delivers outstanding mat quality and a wide paving range. The 2.3 m front mount screed is hydraulically extendable to 4.67 m.
LARGEST UNDERCARRIAGE
Best-in-class 96” (2438 mm) track length with 74” (1880 mm) of ground contact and 140 mm track chain pitch provides smooth ride and excellent flotation. Automatic track tensioning ensures performance and maximizes component life.
VISIBILITY AND CONTROL
The P395 has swing out consoles for optimal visibility while the adjustable, magnetic-resistance intelligent steering system allows for reliable control. The joystick allows for automatic functions.
DURABLE COMPONENTS
Highway class chains, conveyor and auger bearings provide long-term reliability. Remote grease lines located on the front of the counterweight provide easy daily maintenance.
FAST SERVICE
Remote grease lines, spray down system with 4-10’ (1.2 - 3.0 m) coiled hoses. Hinged engine access doors and Caterpillar dealer service and support keep your machine up and running.
