Dozer Wodochip U Blades

Products

Woodchip U-Blades

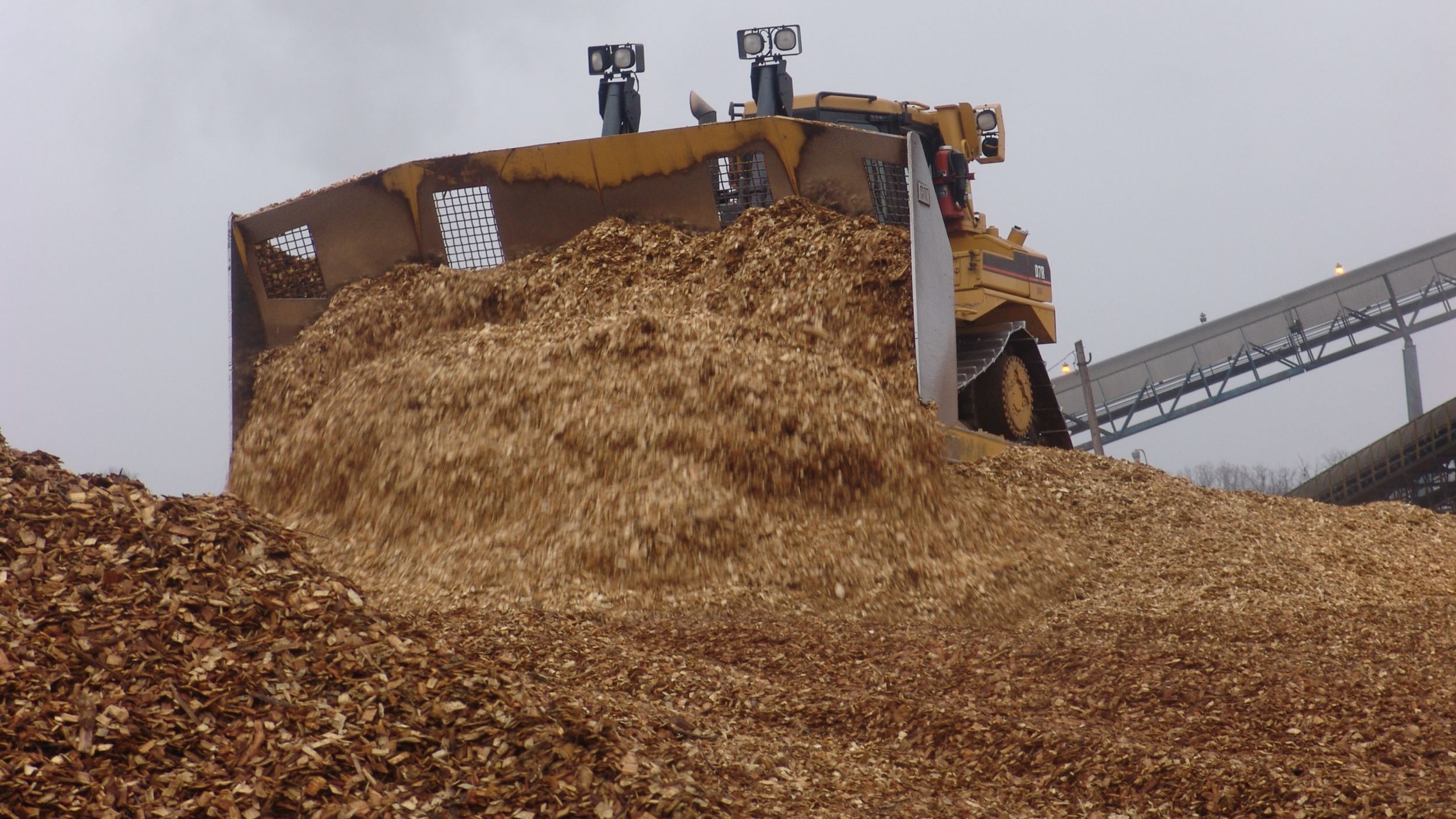

Cat Woodchips U-Blades will move more with less effort than using a standard U-blade. The sidebars on the wings are near vertical for penetration into a pile, this lets the operator cut a load loose from a larger mass of wood chips. The side wings are angled in to the center, and the moldboard is curved to push the material to the center of the blade and keep it rolling. The rolling action makes the material easier to push.
Woodchip U-Blades
15.3 m³ (20.0 yd³)

Cat Woodchips U-Blades will move more with less effort than using a standard U-blade. The sidebars on the wings are near vertical for...

Width
4216.4mm
Wing Angle
30.0°
Height
1880.0mm
Woodchip U-Blades
23.8 m³ (30.8 yd³ )

Cat Woodchips U-Blades will move more with less effort than using a standard U-blade. The sidebars on the wings are near vertical for...

Width
4902.0mm
Wing Angle
30.0°
Height
2279.0mm
Woodchip U-Blades
28.3 m³ (37.0 yd³)

Cat Woodchips U-Blades will move more with less effort than using a standard U-blade. The sidebars on the wings are near vertical for...

Width
5486.0mm
Wing Angle
30.0°
Height
2337.0mm
Woodchip U-Blades
45.9 m³ (60.0 yd³)

Cat Woodchips U-Blades will move more with less effort than using a standard U-blade. The sidebars on the wings are near vertical for...

Width
5461.0mm
Wing Angle
30.0°
Height
3099.0mm
Woodchip U-Blades
72.6 m³ (95.0 yd³)

Cat Woodchips U-Blades will move more with less effort than using a standard U-blade. The sidebars on the wings are near vertical for...

Width
6731.0mm
Wing Angle
30.0°
Height
3353.0mm
You are viewing 5 of 5 products
