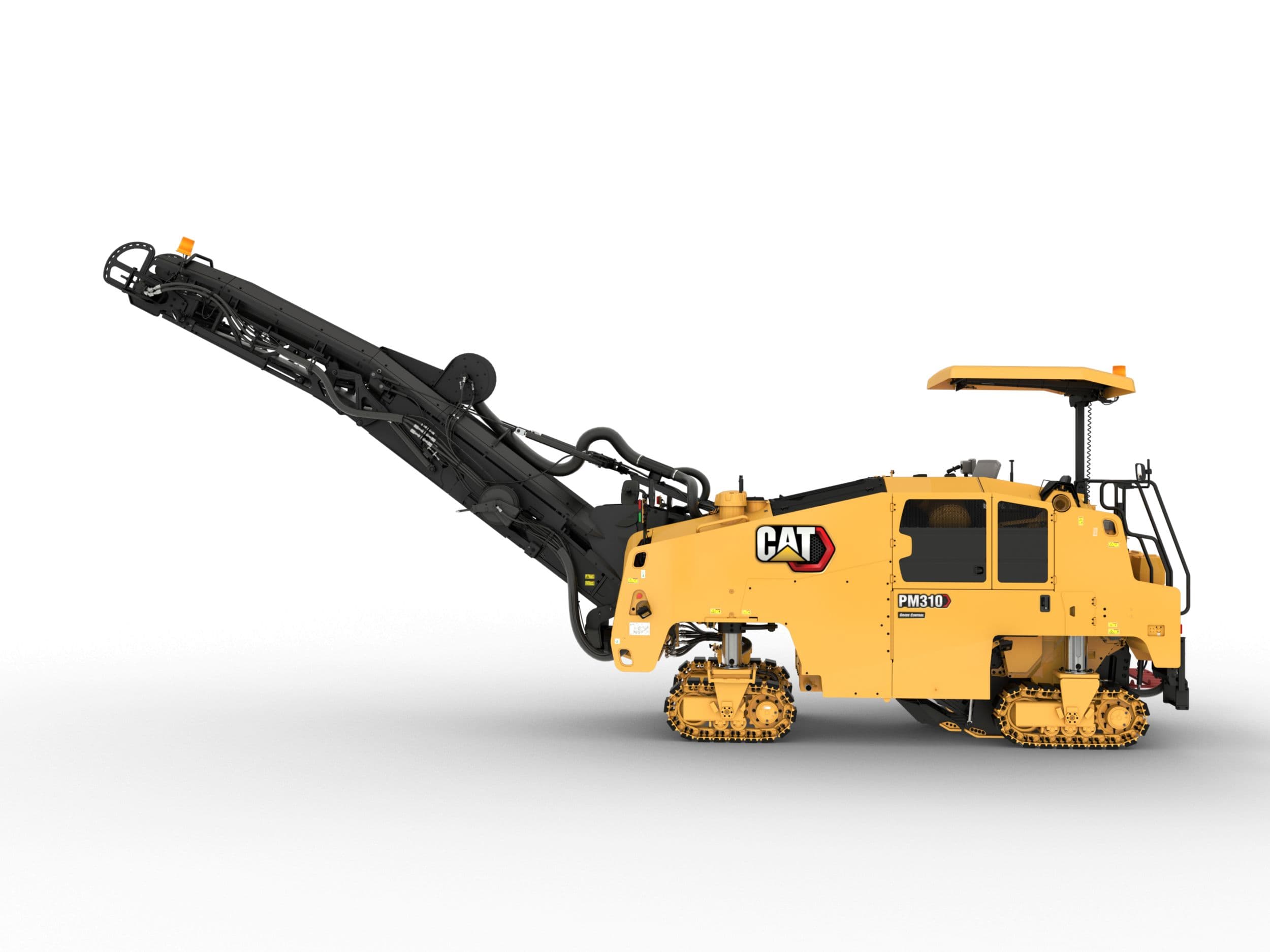

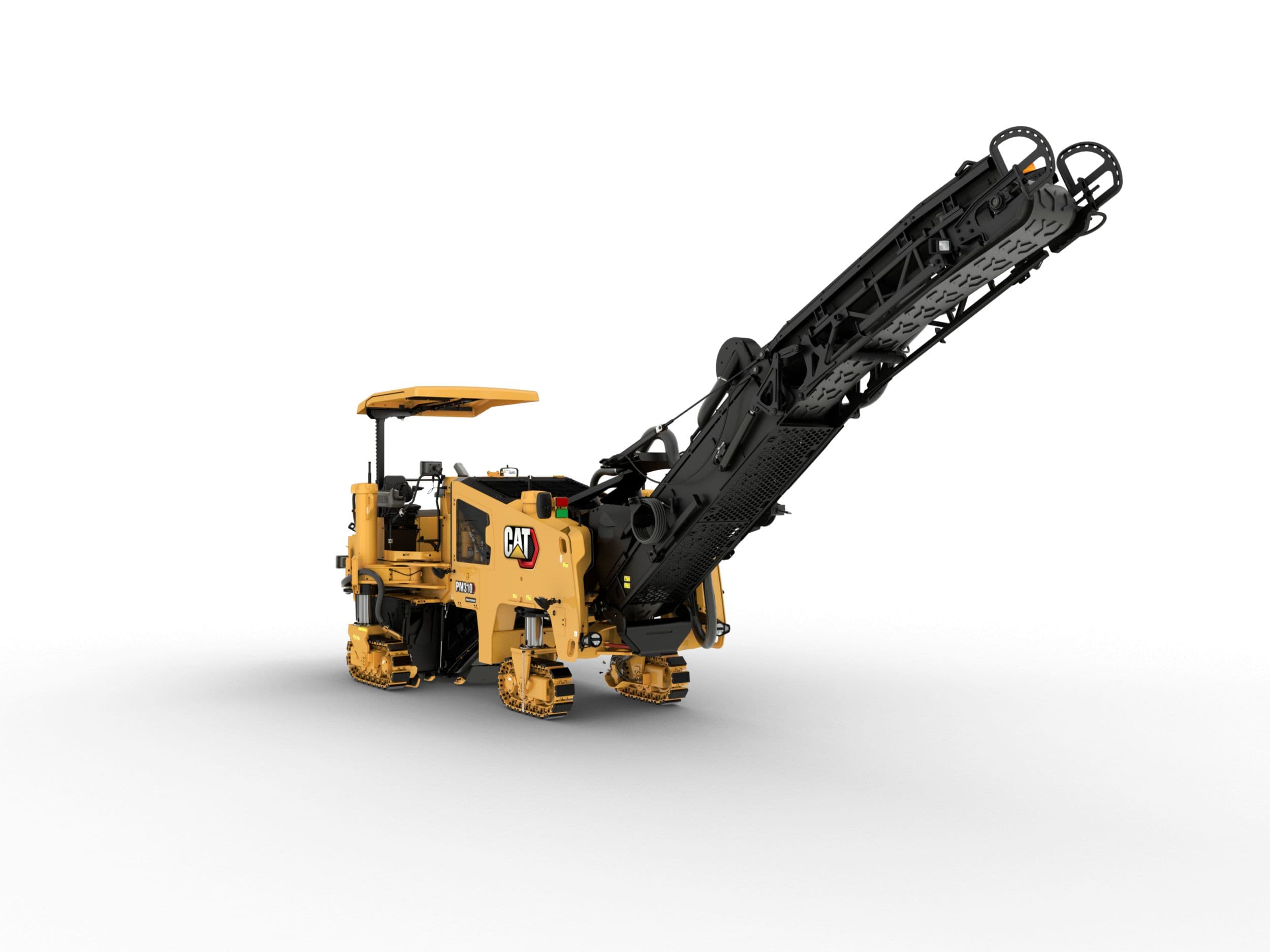

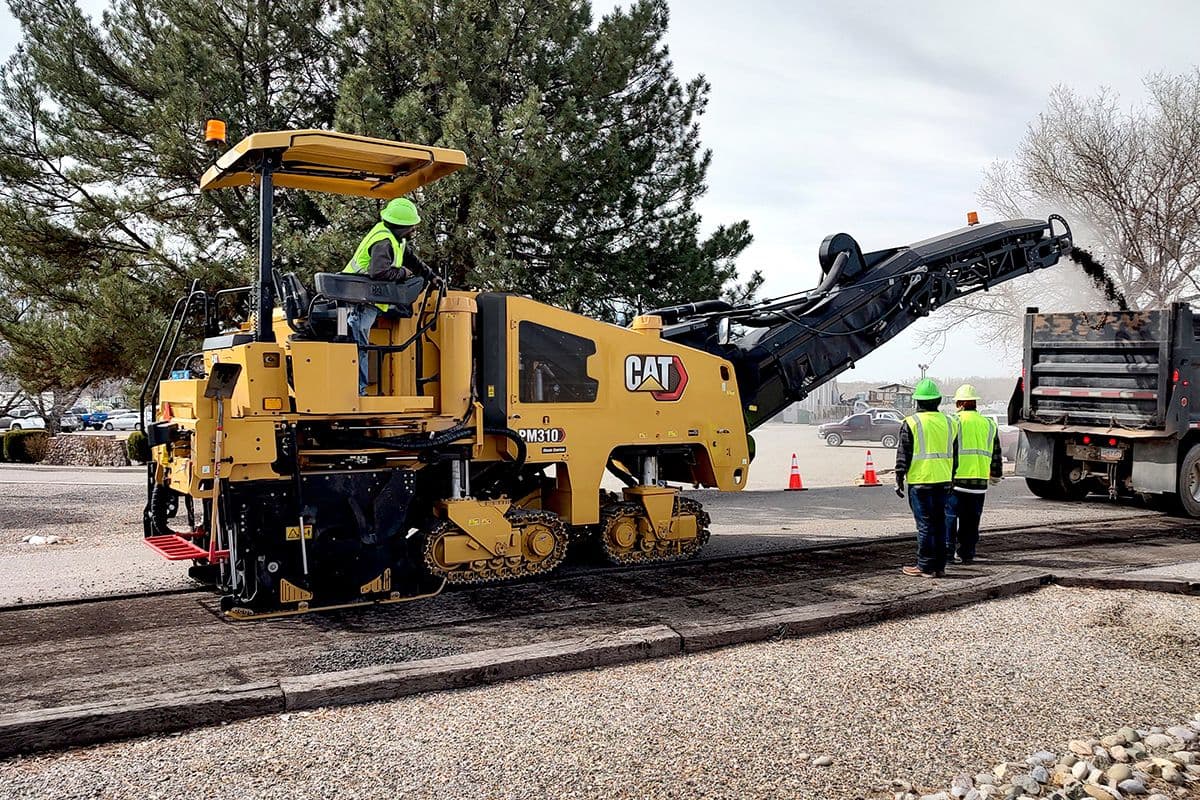

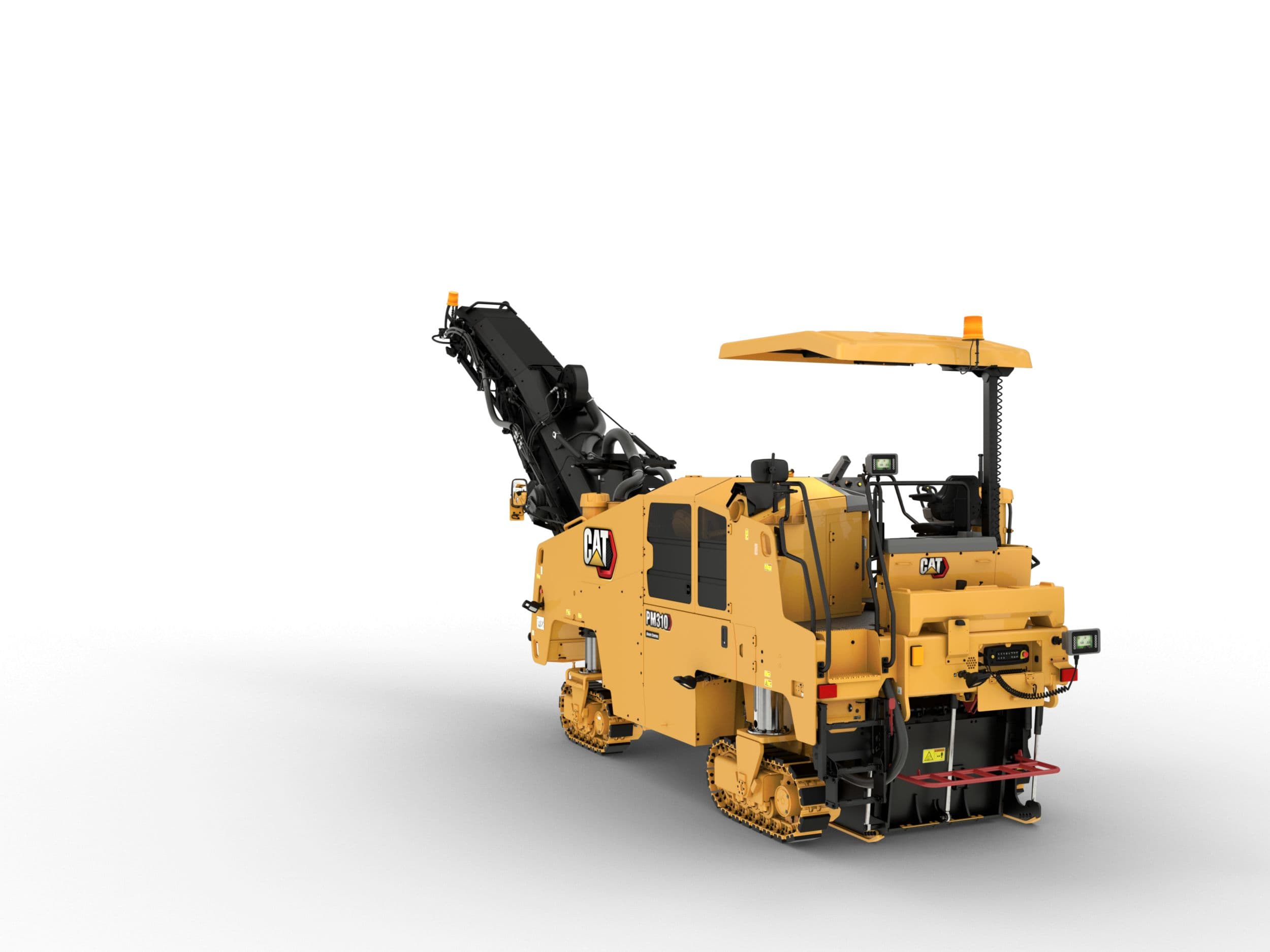

The Cat PM310 is an efficient, highly maneuverable milling machine with a cutting width of 1000 mm (39.4 in) that performs controlled full-depth removal of asphalt and concrete pavements in a single pass. Integrated Cat GRADE and the latest System K rotors deliver performance, productivity and cutting precision. A comfortable operator environment puts intuitive controls at your fingertips, while long service intervals and easy maintenance access simplifies service. While designed for a single operator, the PM310 includes added features for supporting ground personnel. Many options are available to enhance machine versatility when optimum maneuverability or high production capabilities are required.
Cold Planer
Milling Width
1000MM
Rated Power
256KW
Operating Weight
20924KG
Overview
The Cat PM310 is an efficient, highly maneuverable milling machine with a cutting width of 1000 mm (39.4 in) that performs controlled full-depth removal of asphalt and concrete pavements in a single pass. Integrated Cat GRADE and the latest System K rotors deliver performance, productivity and cutting precision. A comfortable operator environment puts intuitive controls at your fingertips, while long service intervals and easy maintenance access simplifies service. While designed for a single operator, the PM310 includes added features for supporting ground personnel. Many options are available to enhance machine versatility when optimum maneuverability or high production capabilities are required.
Specifications
Cutting System
- Milling Width1000mm
- Maximum Milling Depth330mm
Attachments
COMPATIBLE WITH
System K 1.0 m Milling Drum (18 mm spacing)
The System K course milling rotor with 18 mm bit spacing is designed for surface removal or complete removal of road surfaces with a rougher finish at depths up to 330 mm (13 in). A durable, high-performance design with efficient material flow and an excellent cutting pattern maximizes milling production.
System K 1.0 m Milling Drum (15 mm spacing)
The System K standard milling rotor with 15 mm bit spacing is ideal for surface removal or complete removal of road surfaces at depths up to 330 mm (13 in). A durable, high-performance design with efficient material flow and an excellent cutting pattern maximizes milling production.
System K 1.0 m Milling Drum (8 mm spacing)
The System K fine milling rotor with 8 mm bit spacing is ideal for removing road surfaces with a fine textured finish at depths of approximately 100 mm (4 in). A durable, high-performance design with efficient material flow and an excellent cutting pattern maximizes milling production.
