Quick loading, high travel speeds and the ability to load and dump on the run yield fast cycle times, allowing Cat Wheel Tractor-Scrapers to consistently deliver high productivity at the lowest cost per ton.
Elevating Scrapers
Width - Cut
3.14M
Fuel Tank Refill Capacity - Scraper
763.0L
180° Curb-to-Curb Turning Width
11.8M
Overview
Quick loading, high travel speeds and the ability to load and dump on the run yield fast cycle times, allowing Cat Wheel Tractor-Scrapers to consistently deliver high productivity at the lowest cost per ton.
Specifications
General
- Width - Cut3.14m
- Fuel Tank Refill Capacity - Scraper763.0l
- 180° Curb-to-Curb Turning Width11.8m
- Overall Length13.77m
- Scraper Capacity - Struck14.4m³
- Scraper Capacity - Heaped17.6m³
- Maximum Depth of Cut262.0mm
- Overall Shipping Height3.77m
- Maximum Depth of Spread465.0mm
- Overall Width3.57m
- Top Speed - Loaded53.9km/h

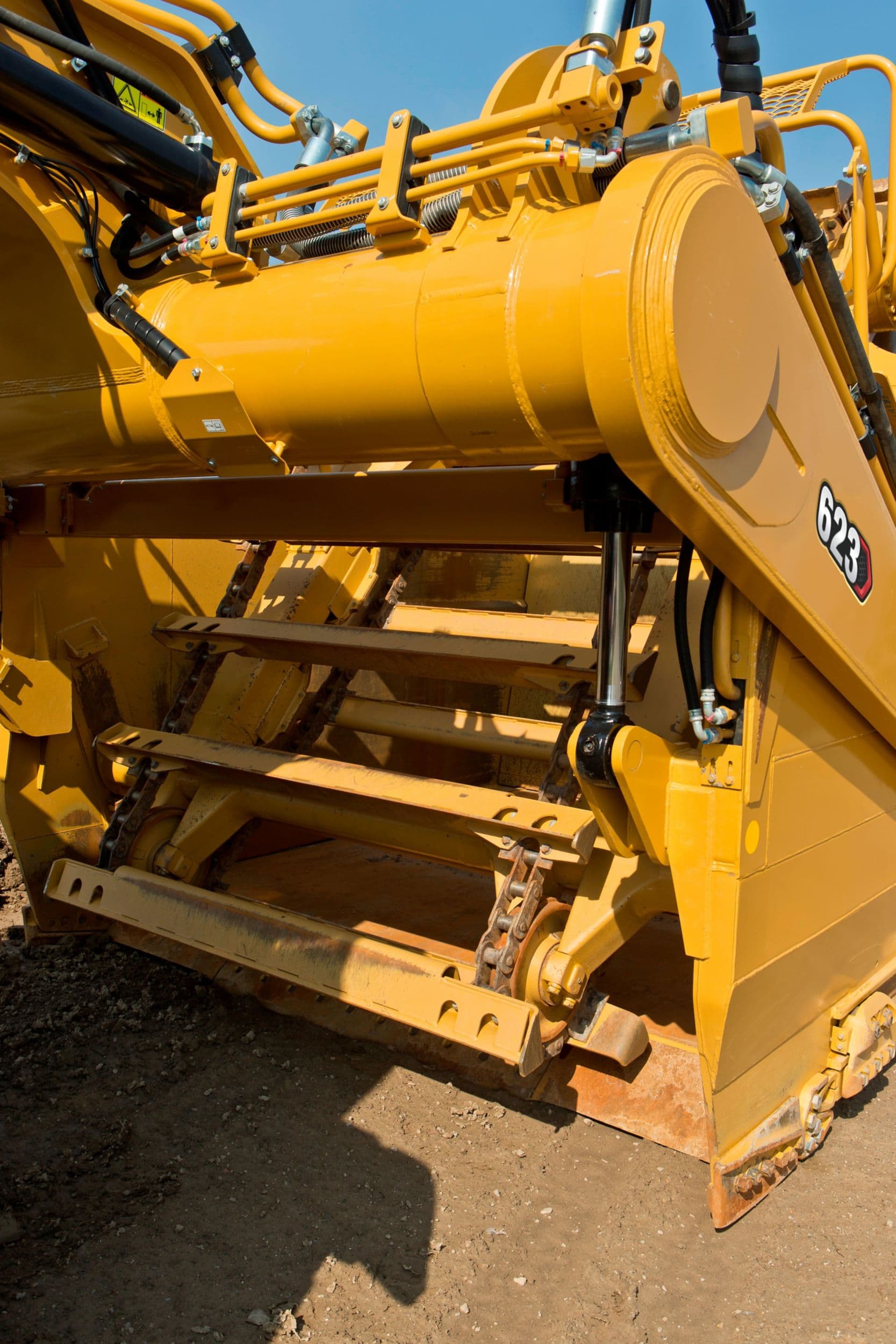

- Elevator Flight Spacing520.0mm
- Maximum Floor Opening1.34m
- Operating Weight - Empty39937.0kg
